Contamination Mapping with the EM31: Rapid Subsurface Characterization

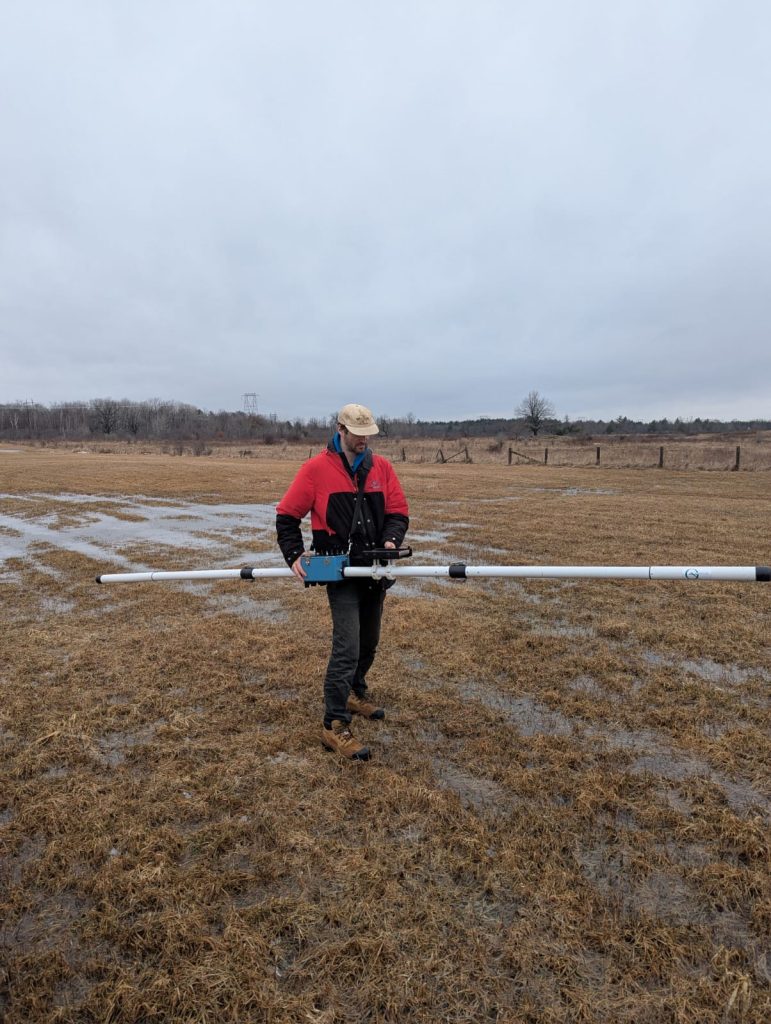

The EM31 electromagnetic induction instrument has become an indispensable tool for efficient contamination mapping, offering real-time detection of conductive plumes associated with saline, hydrocarbon, or heavy metal contaminants. Operating on the principles of electromagnetic induction, the system transmits a primary electromagnetic field (typically at 9.8 kHz) and measures the secondary field induced by subsurface conductors, providing both in-phase (conductivity) and quadrature (magnetic susceptibility) components. This allows for rapid identification of contaminant plumes without direct soil contact, making it particularly effective for preliminary site assessments and delineation of affected areas. The EM31’s shallow to intermediate depth sensitivity (0-6 m in vertical dipole mode) and wide measurement bandwidth (1 mS/m to 1000 mS/m) enable detection of subtle conductivity anomalies associated with contaminant migration pathways. Its ability to collect continuous data while walking (at ~1 m/s) facilitates high-density surveys covering hectares per day, significantly outperforming traditional soil sampling methods in terms of spatial coverage and cost-efficiency.
Technical Advantages for Environmental Applications
The EM31 offers several distinct advantages for contamination studies compared to other geophysical methods. Its simultaneous measurement of apparent conductivity and magnetic susceptibility allows discrimination between different contaminant types—for instance, distinguishing hydrocarbon plumes (typically non-conductive but may show dielectric effects) from saline or metal-rich contaminants (highly conductive). The system’s dual dipole configuration provides flexibility in investigation depth, with horizontal dipole mode extending sensitivity to approximately 3 m and vertical dipole mode reaching up to 6 m—ideal for tracking contaminant penetration through vadose zones. Unlike DC resistivity methods that require ground contact, the EM31 operates effectively on paved surfaces, frozen ground, or vegetated areas, overcoming common site access limitations. Advanced models now incorporate integrated GPS and data logging, enabling real-time georeferenced mapping of contamination hotspots. When calibrated with selective soil sampling, EM31 data can be quantitatively interpreted to estimate contaminant concentrations, though it remains most powerful as a screening tool for identifying areas requiring more detailed investigation or remediation. The instrument’s rapid deployment and minimal setup requirements make it particularly valuable for time-sensitive environmental assessments and long-term monitoring of contaminant plume evolution.
